In experiments and production in fields such as chemistry and pharmaceuticals, rotary evaporators are indispensable equipment. Their performance directly affects the efficiency, reproducibility and safety of the experiments. Today, we will delve into the core functions and operation essentials of the latest intelligent rotary evaporator controller from Measurement & Control, and see how it makes complex experiments manageable and controllable.
Three major upgrades in core functions, enabling precise control over the entire experiment process
1.Intelligent vacuum control: From "existence" to "precision"
The new generation controller offers 3 selectable control modes, combined with sensors, to achieve precise pressure regulation, ensuring a stable and controllable experimental environment, and enhancing the efficiency and consistency of rotary evaporation processing.

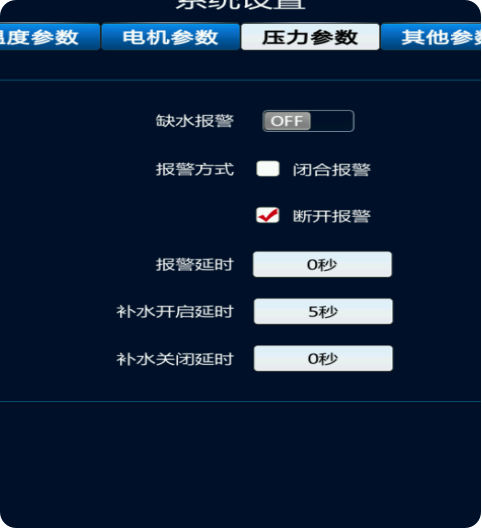

2.Optional automatic water addition and water shortage alarm
The intelligent water replenishment system can monitor the water level in real time and automatically replenish water, without the need for frequent manual intervention. This ensures the continuity of the process.
It is equipped with multiple water shortage detection mechanisms. In case of abnormal situations, it will immediately trigger audible and visual alarms to effectively safeguard the safety of the equipment and experimental samples. After the alarm is triggered, the system will automatically start replenishing water until the safe water level is reached. The alarm delay, replenishment start/stop delay can be customized, effectively preventing false alarms and the frequent start/stop of the water pump, thus ensuring the continuous and uninterrupted experimental process and greater safety.

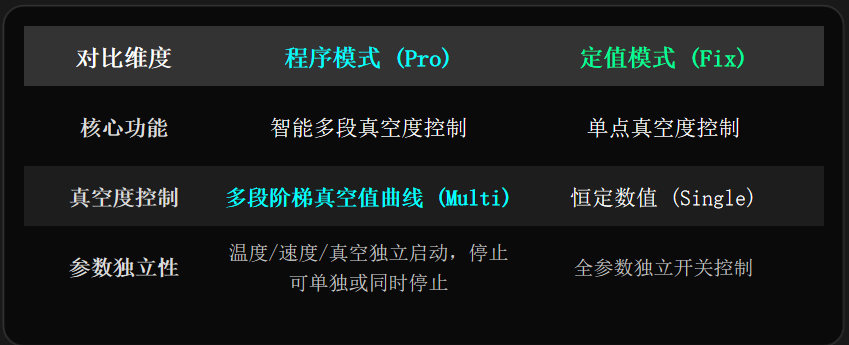

3.Flexible programming mode and customizable alerts
Up to 100 program segments can be edited. Temperature, speed, vacuum degree, etc. can be programmed independently.
Support external switch quantity signal input (X1, X2). Customizable alarm logic can be set to trigger equipment actions based on external events, enhancing system safety and automation level. Built-in high-precision temperature sensor and intelligent PID algorithm achieve constant control of the heating pot temperature. Whether it is sensitive samples or long-term evaporation, it can provide a stable and reliable thermal environment to ensure the consistency of experimental results.
The hardware connections are clear, and the maintenance and debugging are straightforward.

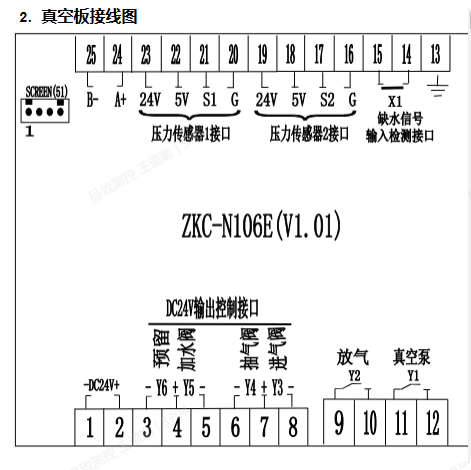

This diagram provides a detailed illustration of the interface definitions and hardware connection logic of the vacuum board. Through clear pin markings, the input and output positions of power supply, sensors, and various signals can be easily identified, making it an important reference for equipment debugging and maintenance.
The power supply unit (24V/5V) provides stable DC voltage input to power the core of the board and external sensors.
The pressure sensor interface (S1/S2) supports two channels of analog/digital signal input, transmitting real-time data on vacuum pressure status.
The X1 dryness signal detection port (core) is located on the upper right side of the board, receiving the signal from the dryness switch, which is a key guarantee for the safe operation of the equipment.

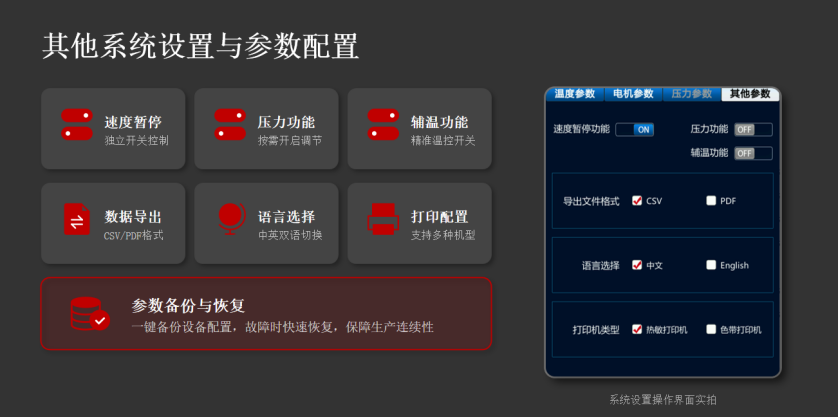

User-friendly settings
One-click backup/restore of parameters. Quickly clone or restore device configurations, eliminating the need for cumbersome reconfiguration after equipment replacement or failure.
Data export: Supports CSV/PDF formats, facilitating data traceability and report generation.
Multi-language and printing: Free switch between Chinese and English interfaces, compatible with various printers.
Equipped with automatic lifting motor and auxiliary heating functions, and can expand WiFi remote communication capabilities.
The new rotary evaporation controller is no longer just a collection of simple switches; it is a high-performance experimental hub that integrates precise control, intelligent logic, multiple safety protections, and convenient maintenance. Its evolution is driving laboratories towards greater efficiency, reliability, and intelligence.
Thank you for your attention. If you need product information or samples, please feel free to inquire with our sales staff.
