Shanghai PEAKS Measure & Control New Bio-safety Cabinet Controller (A2/B2 Universal Model)
In order to meet evolving market demands and enhance user convenience, Shanghai PEAKS has recently developed a new bio-safety cabinet controller based on technical feedback from the market. This upgraded model covers the technical requirements of most B2 and A2 models, significantly improving product performance and applicability while complying with regulatory standards. The product features are detailed as follows:
Features:

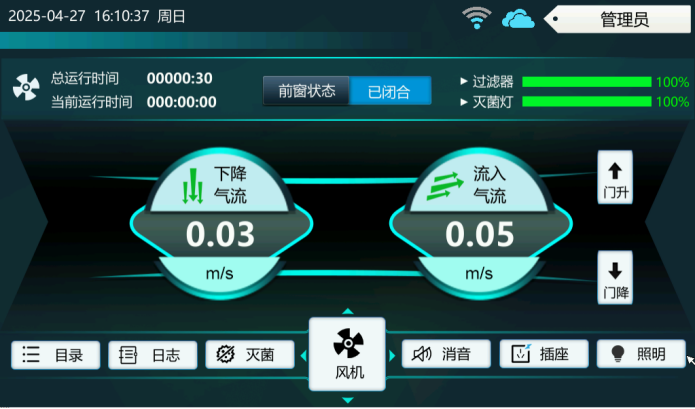

1.High resolution touch screen, beautiful and elegant interface, multiple sets of data displayed on one screen, easy to operate, real-time display of temperature and humidity, available in both Chinese and English;
2. Intelligent fuzzy control, precise control of air speed and quantity of flow;
3. Equipped with air valve control and automatic lifting door function, and can be matched with remote control;
4. Compatible with various wind speed and pressure difference sensors, up to 2 wind speed sensors and 2 pressure difference sensors can be connected;
5. EC motor (PWM/0-10V adjustable) or AC motor control system can be selected, for stronger compatibility;
6. Real time monitoring of the operating status and cumulative operating time of fans, sterilization lamps, filters, etc., with alarm function;

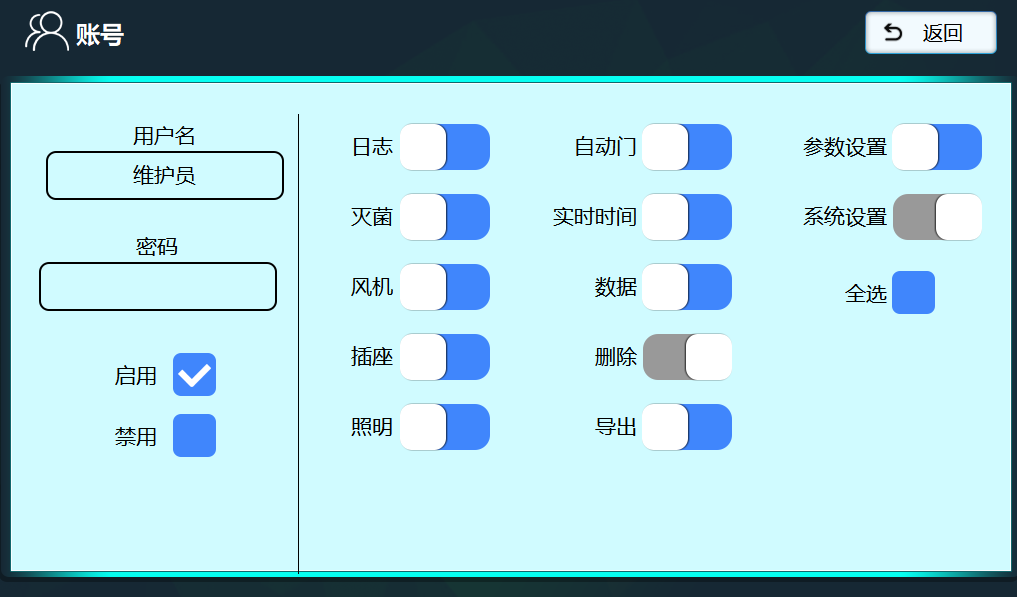

7. The controller has a screen lock function to avoid human touch operation errors; Equipped with multi-level permission management function, different permissions can be freely assigned according to operational needs;

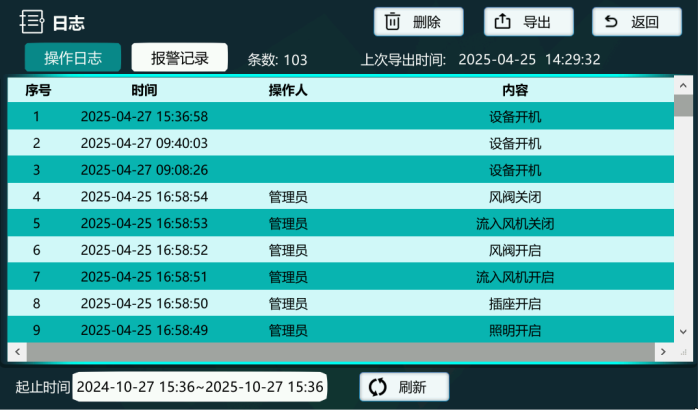

8. Equipped with operation log query function, all stored data can be exported to CSV or PDF format files, with a maximum of 100000 exported at once and a maximum expandable storage capacity of 10 million data, enhancing the security and traceability of experiments;

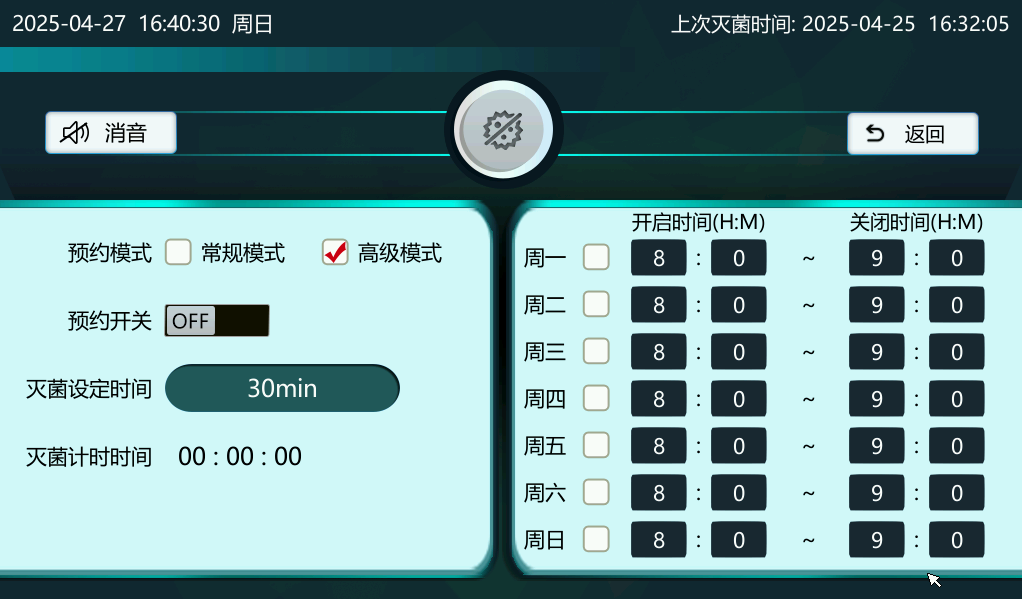

9. It has flexible and diverse appointment sterilization functions and timing functions;
10. It can expand functions such as 485 communication and WiFi remote communication, improving the convenience and security of experiments.

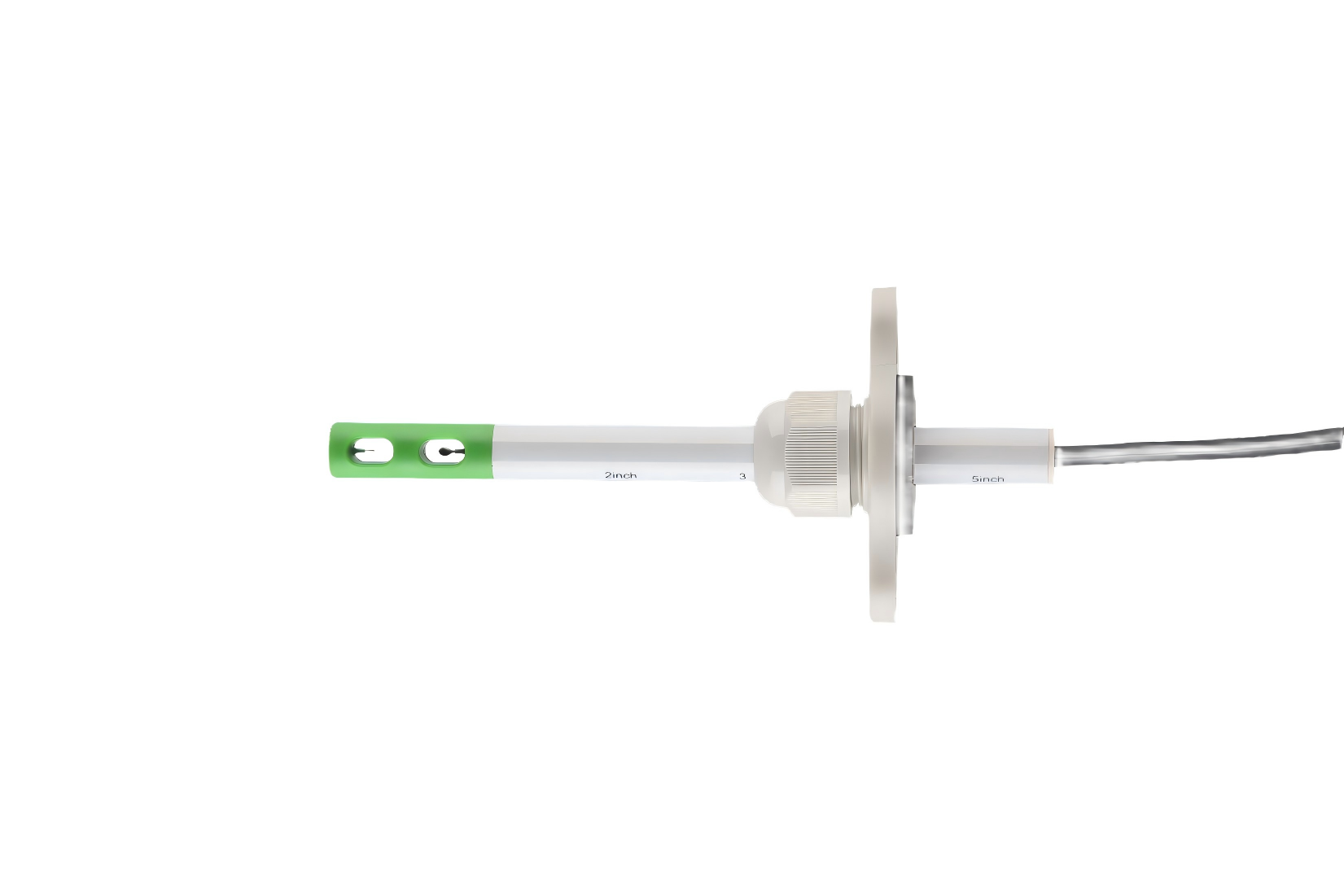

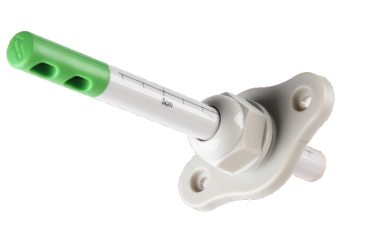

The wind speed sensor provided by our company to customers is introduced as follows:
Features:
The sensor components for wind speed and temperature are separated, with built-in temperature compensation.
Features corrosion-resistant and moisture-proof capabilities. The spherical wind speed sensor element provides sensitive and precise measurement of micro-wind speeds.
Compact design enables flexible installation.
Multiple specifications are available, including ranges of 0-1M/S, 0-2M/S, and 0-10M/S (standard 0-1M/S is provided by our company).
Thank you for your attention.
Please feel free to contact our sales staff for more information if you need.
